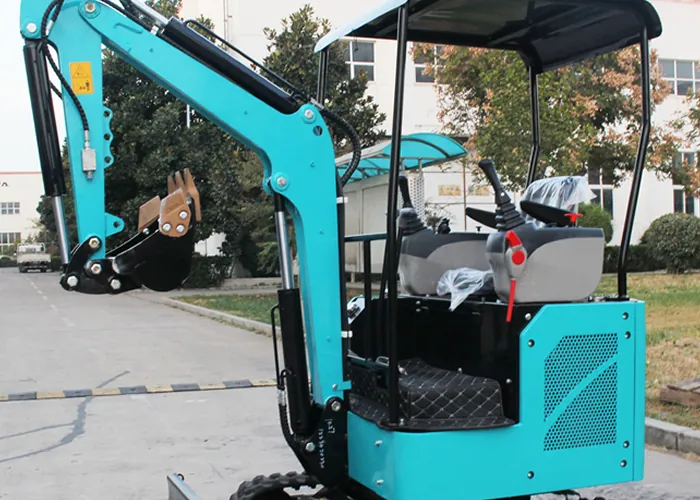

KT Series 17-1 Mini Excavator
-
Overall Vehicle Weight: 1150Kg
Overall Dimensions: 2400*1100*2200mm
Track Width: 180mm
Track Ground Contact Length: 1030mm
Ground Clearance: 385mm
Bucket Capacity: 0.03m³
Maximum Gradeability: 40°
Fuel Tank Capacity: 10L
Hydraulic Oil Tank Capacity: 12L
Hydraulic Flow: 36L/Min
Working Pressure: 16Mpa
Engine: Laidong 380
Engine Power: 30 hp
Description
KT17-1 Mini excavator Benefits：
equipped with adjustable chassis to improve working stability
wide-open engine cover for higher maintainability
operator-oriented design enable
Features:
Pilot Control
Dual Swing Motors
Load Sensing piston pump
Four-Post Canopy
1. Standard plunger pump load sensitive, soft and powerful action, low engine temperature, energy saving and fuel saving
2. Hydraulic pilot operation, easy to operate
3. Dual rotary motors, large strength, long life, soft and comfortable stable action
4. Comes with a cylinder protective cover to prevent accidental damage to the cylinder
5. Bulldozer shovel widened and thickened for long-lasting use.
Dimensions
| Specification | Value |
|---|---|
| Overall Vehicle Weight | 1150 Kg |
| Overall Dimensions | 2400 * 1100 * 2200 mm |
| Track Width | 180 mm |
| Track Ground Contact Length | 1030 mm |
| Ground Clearance | 385 mm |
| Bucket Capacity | 0.03 m³ |
| Maximum Gradeability | 40° |
| Fuel Tank Capacity | 10 L |
| Hydraulic Oil Tank Capacity | 12 L |
| Hydraulic Flow | 36 L/Min |
| Working Pressure | 16 Mpa |
| Engine | Laidong 380 |
| Engine Power | 30 hp |
| Maximum Digging Height | 2550 mm |
| Maximum Dump Height | 1900 mm |
| Maximum Digging Depth | 1884 mm |
| Maximum Digging Reach | 3031 mm |
| Slewing Radius | 1550 mm |
Image Gallery
FAQs
1.How to choose the right mini excavator?
Selecting the appropriate mini excavator for your project depends on several factors:
Job requirements: Consider the size and type of excavation tasks, the ground conditions, and any access limitations.
Digging depth and reach: Choose a model with a digging depth and arm reach that meet your project's specific needs.
Lifting capacity: Evaluate the lifting capacity if you plan to use attachments for lifting or moving materials.
Brand and reputation: Research reputable brands known for reliability, performance, and customer support.
2.How to operate a mini excavator safely?
Operating a mini excavator safely requires proper training and adherence to safety guidelines:
Obtain proper training: Complete a certified training course to learn safe operating procedures and hazard identification.
Conduct pre-operation checks: Inspect the machine daily for any signs of damage or wear, ensuring all fluids are at proper levels.
Wear appropriate PPE: Utilize safety gear, including a hard hat, safety glasses, hearing protection, and work boots.
Maintain a safe work area: Clear the work area of debris, obstacles, and bystanders, ensuring adequate lighting and ventilation.
Be aware of surroundings: Remain alert to overhead hazards, utility lines, and potential ground collapses.
Operate within machine limits: Avoid overloading the excavator, working on slopes beyond the machine's stability limits, or exceeding its lifting capacity.
